| Building a Cedar - Fibreglass Canoe | |||
 |
We begin by ripping 18 foot long pieces of 2x12" Western Red Cedar into 1/4"x3/4" strips and machining each with a bead and a cove. |  |
|
 |

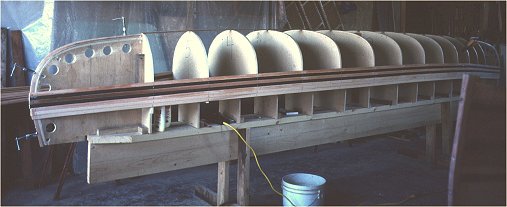

The first strips are attached to the form using staples making sure both sides remain level. |  | |
 |
The stems in place and one strip on each side. | Seven strips. |  |
 |

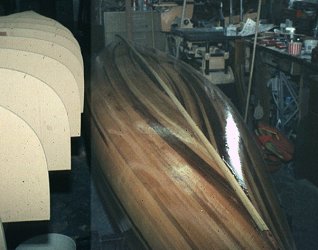

Fifteen strips. | About twenty strips. |  |
 |
Only one side is finished after reaching the top of the stem. | The second side is finished to meet the first at the keel. |  |
 |

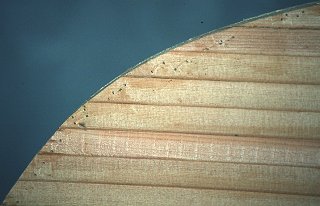

Now HUNDREDS of staples have to be removed. | You'll find any remaining staples while smoothing with a plane. |  |
 |

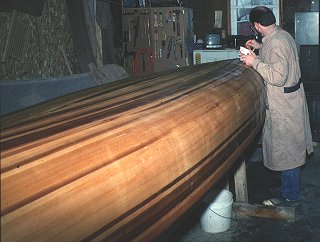

The ends of the planks are trimmed flush with the stems. | The outside stem is applied and the hull is sanded. |  |
 |

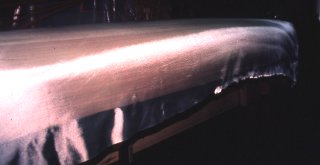

The dry hull is draped with fibreglass cloth which becomes transparent when the liquid epoxy is applied. |  |
|
 |
Now you begin to see what your boat will look like when you're done. | The hull comes off the form when the third coat of epoxy is set |  |
 |
Work begins on the inside. Lots more sanding. | Glass and epoxy again. |  |
 |
Trimming out with inwales, decks, | outwales, seats, thwart, yoke |  |
 |
Sanding, varnishing, sanding, varnishing... Eventually it goes in the water. | ||
John Kowalchuk, Mutes etc.
